Towers

Staging Boards & Trestles

ALL ON THIS PAGE CONFORM TO CLASS1 INDUSTRIAL USE

Alloy stiled staging board constructed with box section alloy stiles and timber decking, available in two width sizes 450mm (18") or 600mm (24"). Choose size at checkout

Timber / Alloy Staging

Model	Length m	Length ft	450mm wide	inc vat	600mm wide	inc vat
TAS24	2.44m	8'0	£73.95	£86.89	£99.83	£117.30
TAS30	3.05m	10'0	£91.35	£107.34	£123.32	£144.90
TAS36	3.66m	12'0	£105.85	£124.37	£142.90	£167.90
TAS42	4.27m	14'0	£123.25	£144.82	£166.39	£195.51
TAS48	4.88m	16'0	£143.55	£168.67	£193.79	£227.71
TAS55	5.50m	18'0	£159.50	£187.41	£215.33	£253.01
TAS60	6.08m	20'0	£201.55	£236.82	£272.09	£319.71
TAS67	6.70m	22'0	£224.75	£264.08	£303.41	£356.51
TAS73	7.32m	24'0	£245.05	£287.93	£330.82	£388.71

Special Budget range of timber / alloy staging

Conforming to BS2037 Industrial Specifications

Model	Length m	Length ft	450mm wide	inc vat	600mm wide	inc vat
TAS24L	2.4m	8'0	£62.40	£73.32	£80.61	£94.72
TAS30L	3.00m	10'0	£73.45	£86.30	£97.25	£114.26
TAS36L	3.60m	12'0	£87.22	£102.48	£112.22	£131.85
TAS42L	4.20m	14'0	£98.71	£115.98	£146.84	£172.53
TAS48L	4.88m	16'0	£110.59	£129.94	£164.91	£193.77
TAS54L	5.50m	18'0	£144.29	£169.54	£184.16	£216.38
TAS60L	6.08m	20'0	£158.47	£186.20	£203.39	£238.98
TAS66L	6.60m	22'0	£171.52	£201.54	£219.84	£258.31
TAS72L	7.20m	24'0	£188.90	£221.96	£242.25	£284.64

TRESTLES

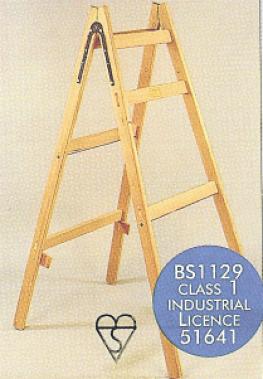

Timber trestles conform to BS1129 class 1 Industrial. Solidly constructed from selected timbers, cross rails spaced at 508mm (20") centres to give staggered rises of 254mm (10"). Tie rods fitted at intervals. Hinges are bolted and screwed for added strength and confidence in use. Check blocks protect against damage in transit

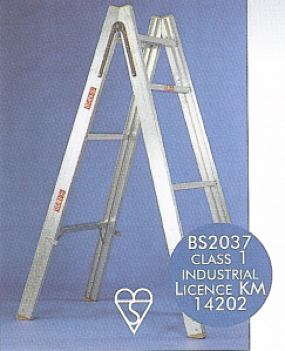

Alloy trestles conform to BS2037 class 1 Industrial. Box section stiles and cross rails for maximum strength and rigidity. Cross rails are riveted to extruded channel section and special locking hinges bolted to the stiles. cross rails spaced at 508mm (20") centres to give staggered rises of 254mm (10"). Strong, lightweight and well designed

Timber
Model	Closed Length m	Closed Length ft	Net Price	Inc VAT
TTT12	1.22m	4'0	£90.72	£106.60
TTT18	1.83m	6'0	£113.40	£133.25
TTT24	2.44m	8'0	£148.68	£174.70
TTT30	3.00m	10'0	£176.40	£207.27
TTT36	3.66m	12'0	£211.68	£248.72

Model	Closed Length m	Closed Length ft	Net Price	Inc VAT
Alloy
TAT18	1.83m	6'0	£122.36	£143.77
TAT24	2.44m	8'0	£146.30	£171.90
TAT30	3.05m	10'	£171.57	£201.59
TAT36	3.66m	12'	£192.57	£226.27

Handrail System

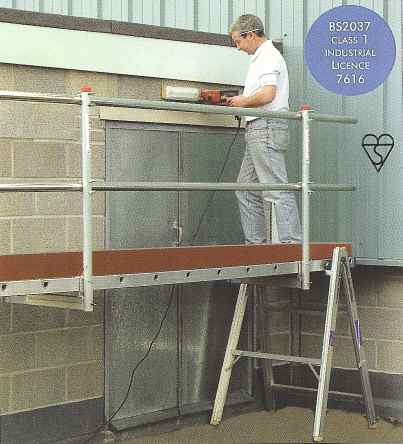

THP Handrail post (singular) - Fully adjustable for 450mm or 600mm wide staging. Handrail post allows for fixing of double handrail / guardrail. Choose the correct number of posts, recommended at 1.5m intervals £57.50 + VAT per post

THT Handrail/guardrail aluminium tube 6m long for use with THP £24.00 + VAT Each

(For Staging Systems To Attach To Ladders Click Here)

STAGING SYSTEM from £385.00 + VAT (LSDSTAG)

(For trestles and staging boards click here)

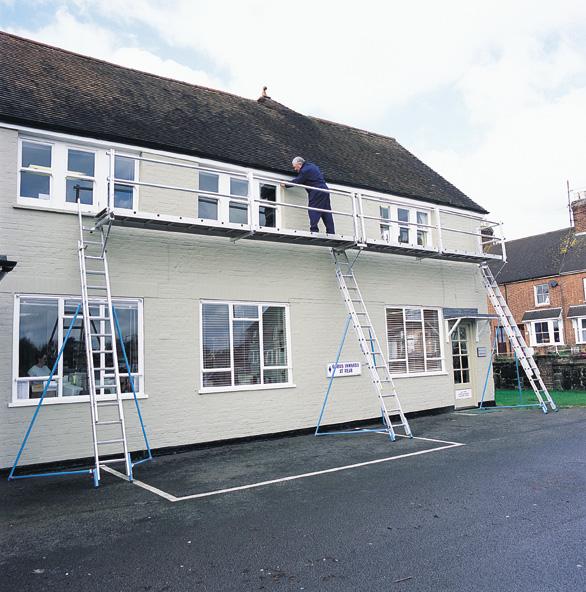

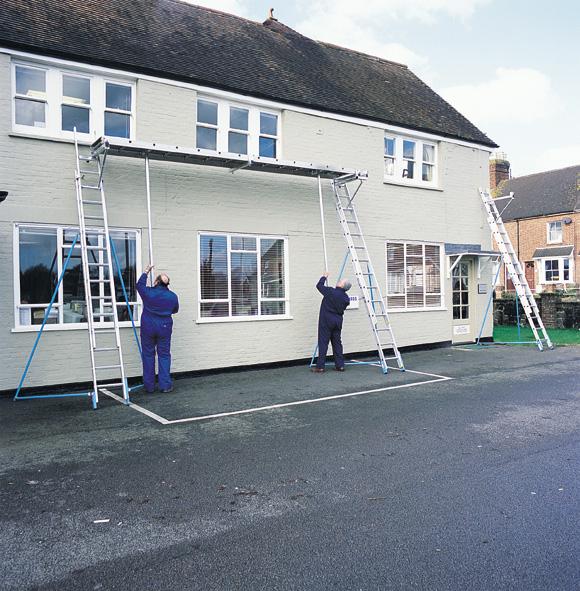

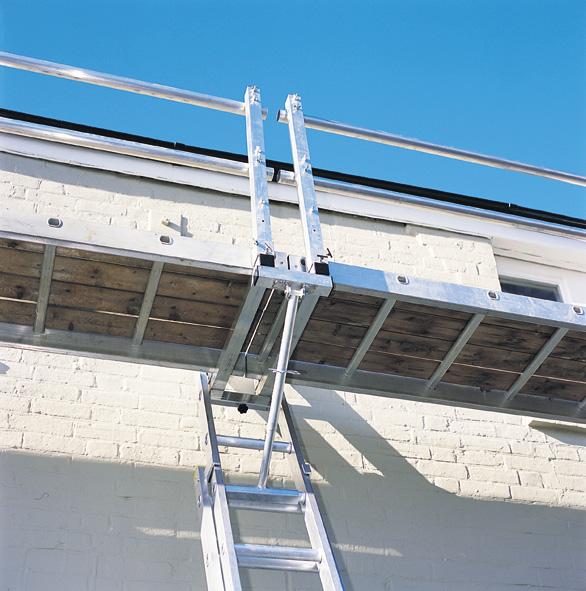

The staging bracket attaches quickly and simply to existing ladders. When used with ladders fitted with our Ladder Stabiliser this provides an exceptionally secure and safe high level work platform which will meet the approval of your H&S Inspector.

• Very strong aluminium construction
• Simple to use
• Low cost
• Use your existing ladders
• 270kg load rating - evenly distributed
• Available in 600mm and 900mm (2 x 450mm) widths
• NEW version, conforms to BS EN13374 - Class A

STAGING SYSTEM KITS

more information on staging kits HERE

Click here for more information on the staging system

Complete kits of staging system including brackets, staging boards (600mm wide), handrails, posts, mid-board posts (where necessary), end rails and erection tees. NEW 2010 version, conforms to BS EN13374 - Class A). Kits exclude Stabilizers.
